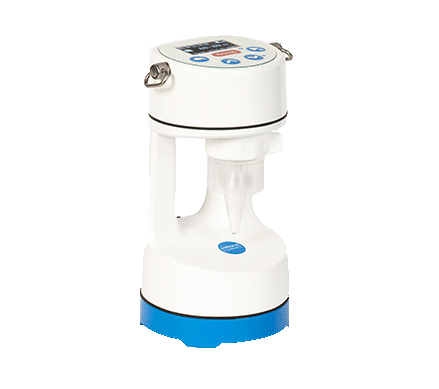

Coriolis Compact air sampler

The Coriolis Compact is a dry Cyclonic air sampler able to operate up to 8 hours straight and compatible with multiple downstream analysis (NGS, qPCR, Culture).

The Coriolis Compact portable biological air sampler monitors indoor or outdoor air quality. Light, compact and ergonomic, it is the ultimate all-terrain microbiological air sampler. Its cyclonic technology collects biological particles. It is compatible with the most common micro-organism analysis methods, and measures indoor and outdoor air quality quickly and efficiently.

Get a quote for
Coriolis Compact air sampler

Get a quote

Coriolis Compact for the analysis of indoor and outdoor micro-organisms

The Coriolis Compact portable air sampler weighs only 1.2 kg and has a long battery life (up to 8h). Its small size makes it easy to transport and it is the ideal choice for both outdoor and indoor air quality monitoring. Its scope of application is very broad: Biocontamination of medical or health environments, virological sampling, biological risk control, environmental pollution control, etc. This microbiological air sampler range meets the requirements of air monitoring even when microbiological contamination is low.

Temperature range:

  • +5°C to +45°C with a humidity level from 10% to 90%.

Dimensions:

  • 255 x 135 x 130 mm

Weight:

  • 1,2 kg

Air flow rate:

  • 50L/min

Collected particle sizes:

  • 500 nm à 10 μm

Collected particle types:

  • bacteria, virus, mold …

Autonomy:

  • 8 hours

Technology:

  • Dry collection

Read the user manual

Mobile and easy to use, the Coriolis Compact is suitable for indoor and outdoor sampling.

Due to an improved battery autonomy, it performs up to 8 hours of continuous sampling. The cycles of sampling are programmable.

As the sample is collected thought a dry cyclonic technology, it can be easily recover with any suitable buffer to perform analysis. The obtained sample is compatible with multiple downstream analysis such as Culture, PCR, qPCR, or NGS so it gives access to highly sensitive and specific results in only a few hours. Bertin provides single use consumable to avoid cross contamination.


1. Sterile cone is placed on the device and locked.
2. Aspirated air runs into the cone.
3. Particles contained in the air are retained in the cone wall.
4. Collected particles are recovered by adding liquid to the cone.

Frequently Asked Questions

    • Who can use the Coriolis Compact?
    • Are the samples collected with the Coriolis Compact suitable for analysis with different molecular biology techniques?
    • Do you recommend any maintenance actions for the Coriolis Compact?
    • How do I decontaminate my Coriolis Compact after sampling?

Read the answers and see other questions

Virus collection & detection

One of the main challenges of virus monitoring in the air is obtaining adequately concentrated samples. With its dry sampling technology, the Coriolis Compact is a perfect instrument to detect viruses in the air. Indeed, after each collection, users can choose the volume of solution in which they wish to resuspend their sample. Additionally, solutions that can preserve the nucleic acids present in the sample can also be taken advantage of. For example, in the case of RNA viruses such as SARS-CoV-2, users have the option to immediately resuspend their sample in Trizol to protect RNA against degradation.



Download the white paper

Lightweight and portable, Coriolis Compact can easily be handled with CBRN personal protective equipment, and can be moved and positioned at strategic locations for indoor and outdoor sampling.
Robust and compact, the air sampler is therefore perfectly suited to the operational needs of armed forces and civil security organizations in the event of biological threats.
The collected particles can then be analyzed to ensure detection and identification of CBRN threats. Coriolis air samplers are the first players in the detection chain providing CBRN detection and identification equipment with well-concentrated biological agent samples.

Reasons to choose Coriolis Compact air sampler

Long time battery autonomy

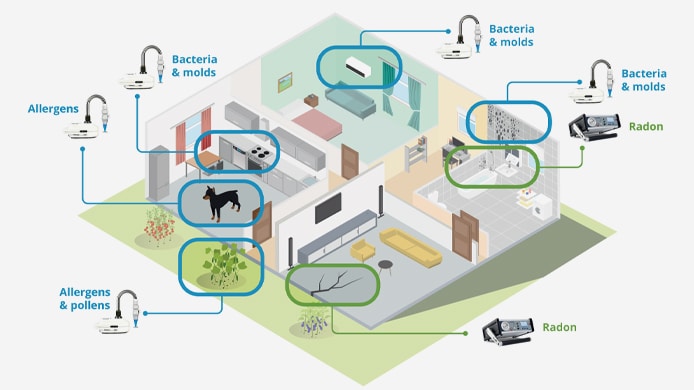

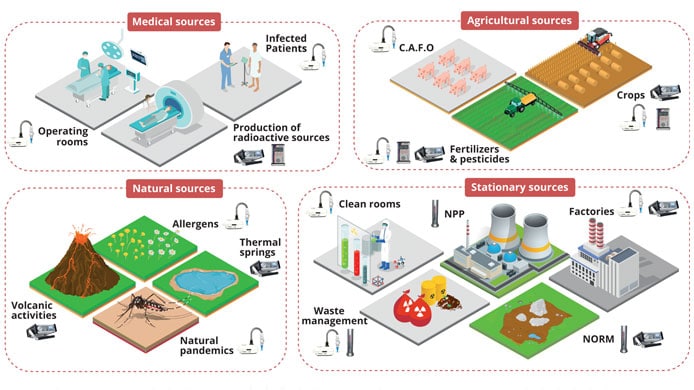

Indoor/outdoor sampling

Compact and mobile equipment

Easy to use & set up

Compatible with multiple downstream analysis

Expert advice

MarianaG

Mariana Gaboriau

Field Application Scientist

"The Coriolis Compact allows to collect more particles with up to 8h hours straight sampling. So you have access to a representative sample of your environment."

Floriane Cohen

Field Application Scientist

"Thanks to its cyclonic collection, the sample is compatible with rapid analysis methods such as qPCR. It gives results in less than an hour."

Reviews

We used Coriolis compact to investigate the microbiome of alpine pastures. The device is easy to handle, works well in remote areas and offers a simple way to characterize complex environments.

Joahanna Freidl

Paracelsus Medical University, Austria

Coriolis compact allowed us to monitor the airborne fungal spores in food producing facility in order to design responsive decision-making tools.

Nicolas Nguyen Van Long

ADRIA Food Technology Institute
