• Sensor
PICO GEN2(S) (LYNRED)
640 x 480px (VGA) @17µm pitch
• Bandwidth
LWIR (8-12µm)
• HFoV (°)
91 / 57 / 32 / 25 / 18 / 11 / 10 / 8
(More on demand)
• NETD – CamSight® LP
< 50mK @ F#1/1.0

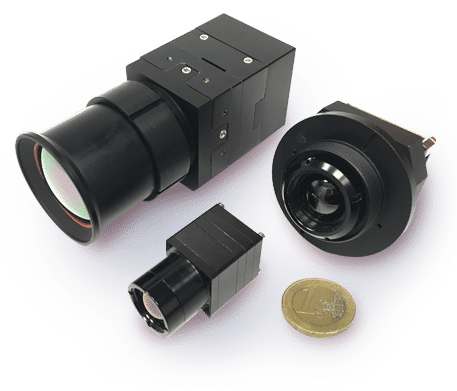

CamSight – OEM LWIR Thermal Camera Modules
CamSight is a lightweight, compact thermal camera module that can be integrated into the heart of any complex optronic system, for multiple observation, surveillance and protection applications.
Designed for integrators and Original Equipment Manufacturers (OEMs), CamSight is a family of uncooled, thermal camera modules for complex optronic systems.
Compact thermal camera modules, rugged and energy efficient, CamSight infrared thermography cameras meet all integration requirements and are available in 6 versions:
- CamSight LP (Low Power), a low-power thermal camera module,
- CamSight HD (High Definition), a high definition infrared camera module,
- CamSight LS (Low SWaP – Size, Weight and Power), a thermal camera module with a small footprint and low power consumption,
- CamSight AI (Artificial Intelligence), a camera module with an on-board low-power artificial intelligence system,
- CamSight SW (Sky Watcher), a radiometric camera module dedicated to sky observation,
- CamSight WE (Wireless Encoded), a low-power wireless encoded thermal camera module,
The versatile CamSight infrared camera can also be customized on request, to meet customer needs or the specifics of the receiver optronic systems: wide range of lenses with different Field Of View (FOV) and DRI capabilities, many video outputs.
Built to meet the low SWaP requirements of integrators, these thermal camera modules are compatible with a wide range of land, naval and air applications that require optimal day and thermal night vision performance.
- Perimeter surveillance for military vehicles, driver Vision Enhancement, vehicle mobility, personnel protection
- Protection (key assets, sensitive sites and critical infrastructures) and local Situational Awareness improvement
- On-board observation on UAV and UGV and for dismounted soldiers (night/day vision enhancer, weapon sight…)
Based on an uncooled infrared technology, CamSight thermal imaging camera modules deliver high quality images, with low latency and in record time. These thermal cameras thus offer the best possible day and night vision, in a compact design suitable for integrators and for all critical, civil and military missions.
• NETD – CamSight LP+
< 30mK @ F#1/1.0
• Consumption
< 1W
• Video outputs (Digital and/or analog)
SD-SDI / Progressive PAL
GigE Vision
• Time to image
< 1.2s
• Dimensions
OEM version: 46 x 46 x 29mm
Casing version: 60 x 60 x 65mm
• Weight
OEM version: 60g
Casing version: 188g
• Sensor
ATTO GEN2 (by LYNRED)
1280 x 1024px (SXGA)@12µm pitch
• Bandwidth
LWIR (8-12µm)
• HFoV (°)
95 / 56 / 46 / 28 / 24 / 17 / 15 / 9
(More on demand)
• NETD – CamSight HD
< 40mK @ F#1/1.0
• Consumption
< 2.8W
• Video outputs
HD-SDI / GigE Vision
• Time to image
< 3s
• Dimensions
OEM: 40 x 40 x 31.5 mm
Quick Connect: 40 x 40 x 58.3 mm
• Mode
Shutter/Shutterless/Soft shutter
• Weight
OEM: 83g
Quick Connect: 128g
• Sensor
ATTO (by LYNRED)
640 x 480px (VGA) @12µm pitch
• Bandwidth
LWIR (8-12µm)
• HFoV (°)
112 / 86 / 61 / 50 / 32 / 18 / 13
(More on demand)
• NETD – CAMSIGHT LS+
< 40mK @ F# 1/1.0
• Consumption
0.75W*
*Parallel bus 25°C & 25Hz
• Video outputs
SD-SDI / PAL / MIPI CSI2 / GigE Vision / Parallel bus and USB
• Time to image
< 1s
• Dimensions
22 x 22 x 15.5mm
• Weight
10g
• Sensor
ATTO 1280
• Bandwidth
LWIR (8-12µm)
• HFoV (°)
9° / 15° / 25° / 28° 46° / 56° / 74° / 95°
• NETD – CamSight® AI
NETD < 40mK @ f/1.0
• Consumption
< 4,5W
• Video outputs
Low latency HD-SDI @ 25Hz or AI result frequency overlayed HD-SDI
• Time to image
< 3s
• Dimensions
71 x 61 x 55mm (OEM Core)
• Weight
83g (OEM Core)
• Sensor
PICO GEN2
• Bandwidth
LWIR (8-12µm)
• HFoV (°)
180°
• NETD – CamSight® SW
< 50mK @ F#/1.0
• Consumption
< 5
• Video outputs
GigE Vision
• Dimensions
71 x 61 x 55mm
• Weight
150g (OEM Core)
• Sensor
LYNRED ATTO640D-02
• Bandwidth
LWIR (8 µm – 12µm)
• HFoV (°)
112 / 86 / 61 / 50 / 32 / 18 / 13 (More on demand)
• NETD – CamSight® WE
< 40mK @ F1/1.0
• Consumption
< 5
• Video outputs
Ethernet H264/H265/MPEG – rtsp
• Dimensions
50 x 40 x 38mm
• Weight
90g
Reasons to choose CamSight – OEM LWIR Thermal Camera Modules
High image quality, best infrared camera
Small size, weight and energy consumption
From narrow to wide fields of view
Large selection of lenses for different FOV/DRI.
Dedicated to manufacturers
Various output formats, algorithms and parameters can be controlled during operation.
Designed and made in France
