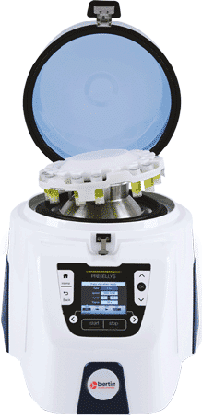

Precellys Evolution Touch Homogenizer

The Precellys Evolution Touch is the most advanced tissue homogenizer that boasts exceptional efficiency and versatility, making it suitable for all types of sample preparation requirements.

Prior to performing any analysis of molecules of interest, biological samples must first be prepared, which generally requires tissue homogenization. The Precellys® Evolution Touch tissue homogenizer brings together performance, versatility and high-level efficiency enabling you to safely carry out all your routine and R&D projects.



Get the power of Precellys Evolution Touch

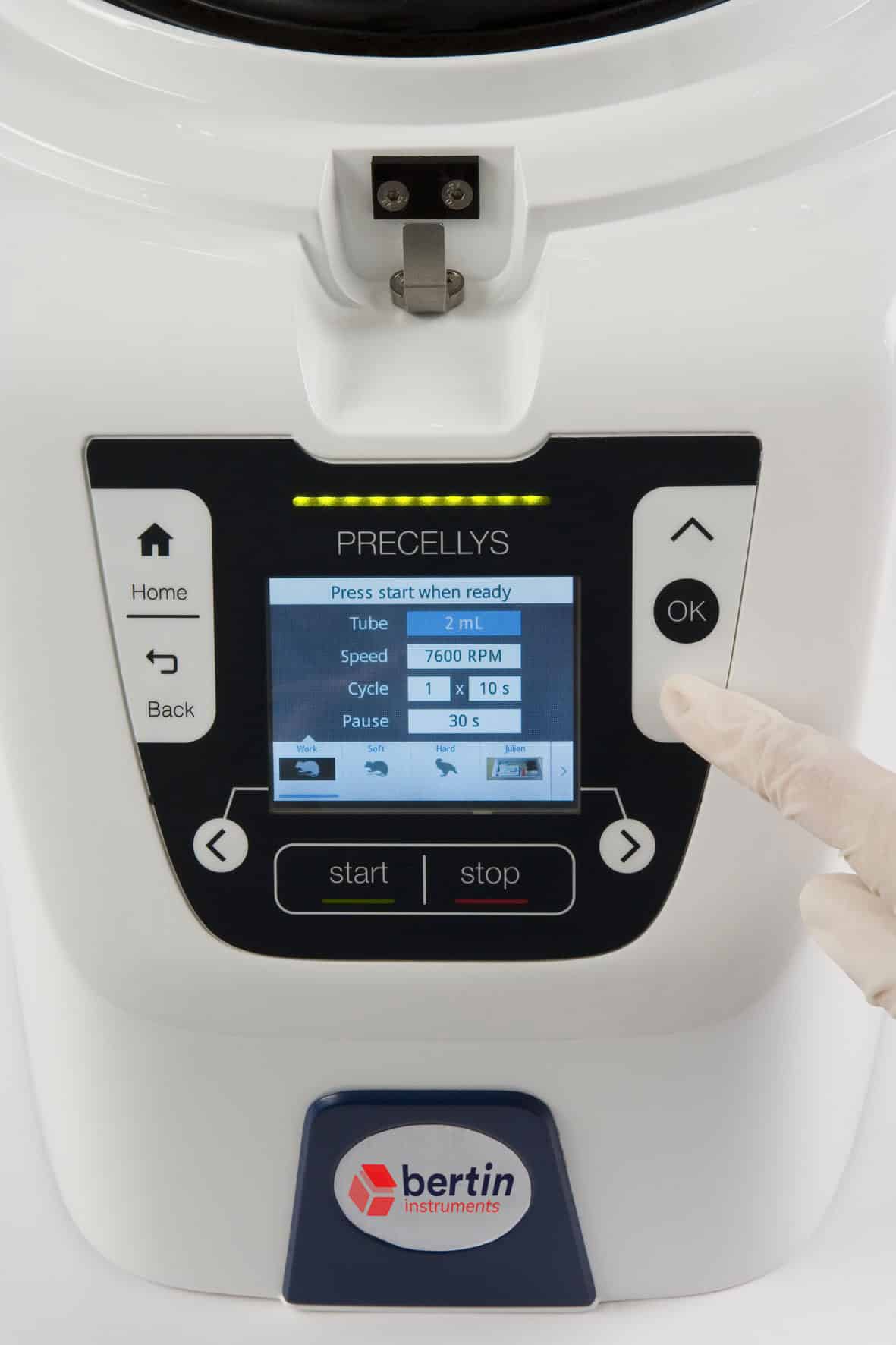

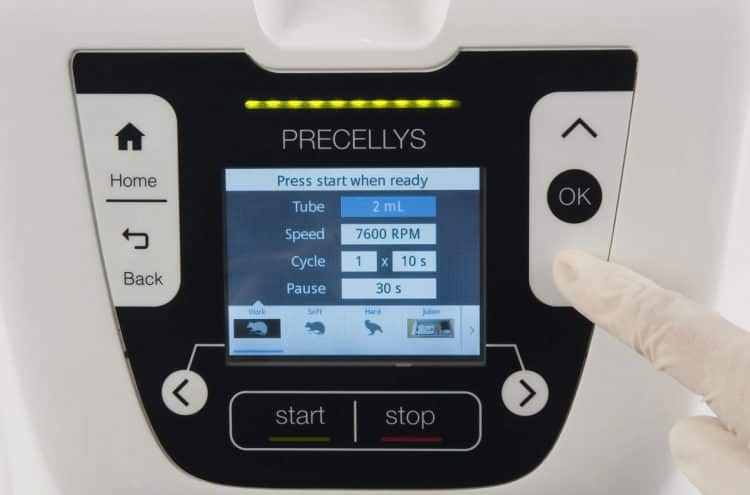

The Precellys Evolution Touch is both flexible and efficient, giving users the ability to grind, homogenize or lyse any kind of sample. It offers a complete range of accessories to meet all homogenization needs, from the smallest samples with the 96WP to the largest with the 50mL tubes and the hardest samples with the dedicated metal tubes. Easy to use with its new intuitive touchscreen interface, designed to be used with gloves, researchers can easily set up the Precellys Evolution Touch. The Precellys Evolution Touch puts the power of homogenization into the hands of researchers and scientists.

Download the Precellys Lysing kit 96WP flyer

Get a quote for
Precellys Evolution Touch Homogenizer

Get a quote

Capacity:

  • From 8 to 96 wells, 300µL
  • From 1 to 24 tubes, 2mL/0.5mL
  • From 1 to 12 tubes, 7mL
  • From 1 to 6 tubes, 15mL
  • From 1 to 3 tubes, 50mL
  • From 1 to 6 metal tubes

Speed range:

  •  From 4,500 rpm to 10,000 rpm (increment by 100 rpm)

Locking system:

  • Automatic tubes locking system – patented

Programs:

  • The software allows users to save an unlimited number of protocols

Number of cycles:

  • up to 10

Cycles time:

  • up to 90sec (increment by 1sec)

Weight:

  • 60lb / 27kg

Dimensions:

  • L: 378mm, W: 515mm, H: 400mm (632mm with open lid)

Power requirement:

  • 90 – 250VAC / 50-60 Hz Power: 1 kVA

Noise:

  • Less than 70 dB

Norms:

  • CE and CFR 47 part 15 certified

Catalog number:

  • P002511-PEVT0-A.0



Download the user guide

Efficiency on every sample:

  • Up to 10,000 rpm to process and standardize any sample preparation in seconds. Even the hardest samples such as hair, teeth and bones can be fully ground in a short period of time.

Easy handling:

  • The innovative and patented automatic tube locking system allows for easy handling of the Precellys Evolution Touch without advanced training

Best life time:

  • The high quality manufacturing of the Precellys Evolution Touch drastically reduces the need for maintenance and additional expenditure over the years – The Precellys Evolution Touch is made in France

Adapted to any type of sample:

  • The high flexibility of the Precellys Evolution Touch, which is capable of handling four sizes of tube (0.5, 2, 7, 15 and 50 mL), makes it the perfect tool when processing samples of different sizes, weight or volume.

Protection for thermo-sensitive molecules:

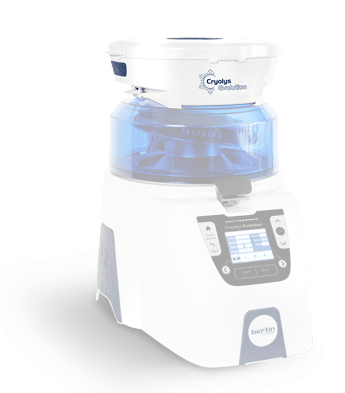

  • The Precellys Evolution Touch is compatible with the Cryolys Evolution cooling unit. This combination allows users to protect sensitive molecules when processing samples.



Precellys technology presents two main features:

1- The 8-figure 3D-motion (multi-directional) movement of the tubes. The same high level of energy given to the beads inside each tube ensures equal homogenization efficiency for all processed samples (up to 24 at once). Thanks to this complex movement, the Precellys Evolution Touch can disrupt any type of sample (even the hardest) in seconds with perfect reproducibility while limiting heat generation.
2- The patented locking vacuum system of the tubes during the process. The Press’n block system saves time and energy. It makes it easier to handle equipment and secures the tubes before the grinding process.

2mL holder pack
2mL holder pack
S002274-PEVO0-A.0
Up to 24 tubes of 2mL (or 0.5mL)

7mL holder pack
7mL holder pack
S000911-PEVO0-A.0
Up to 12 tubes of 7mL

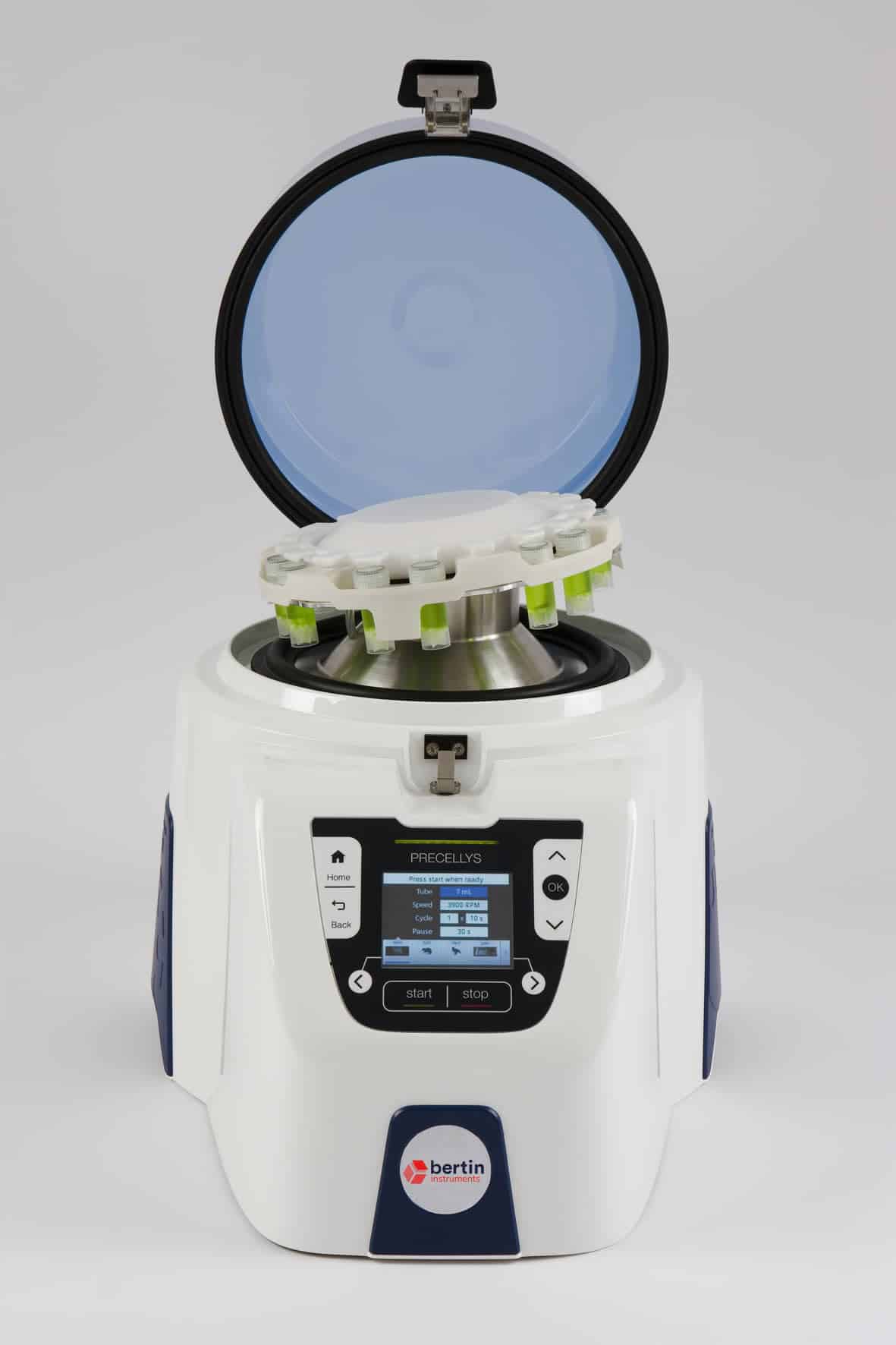

15mL holder pack
15mL holder pack
S000810-PEVO0-A.0
Up to 6 tubes of 15mL

50mL holder pack
50mL holder pack
S002474-PEVO0-A.0
Up to 3 tubes of 50mL
Download the flyer

Metal tubes
Metal tubes
P000951-LYSK0-A.0

96 well-plate
96 well-plate
S002276-PEVO0-A
From 8 to 96 wells of 0.3mL
Prefilled 96 well-plates available

Metal holder pack
Metal holder pack
Holder only – S002275-PEVO0-A.0
Full M-Pack – P000951-LYSK0-A.0
(contains 6 tubes + holder pack)

7ml rack
7ml rack
S000748-PR480-A.0

Centrifuge adapter pack for 7ml tube
Centrifuge adapter pack for 7ml tube
S000749-PR480-A.0

Cryolys Evolution
Cryolys Evolution
P000671-CLYS2-A.0
The Cryolys Evolution is the cooling system specially developped for Precellys Evolution tissue homogenizer. Based on dry ice sublimation, it enhances the efficiency of molecular extraction, resulting in premium quality analysis, maintaining the desired temperature between 0 and 10°C before and during the tissue homogenization.

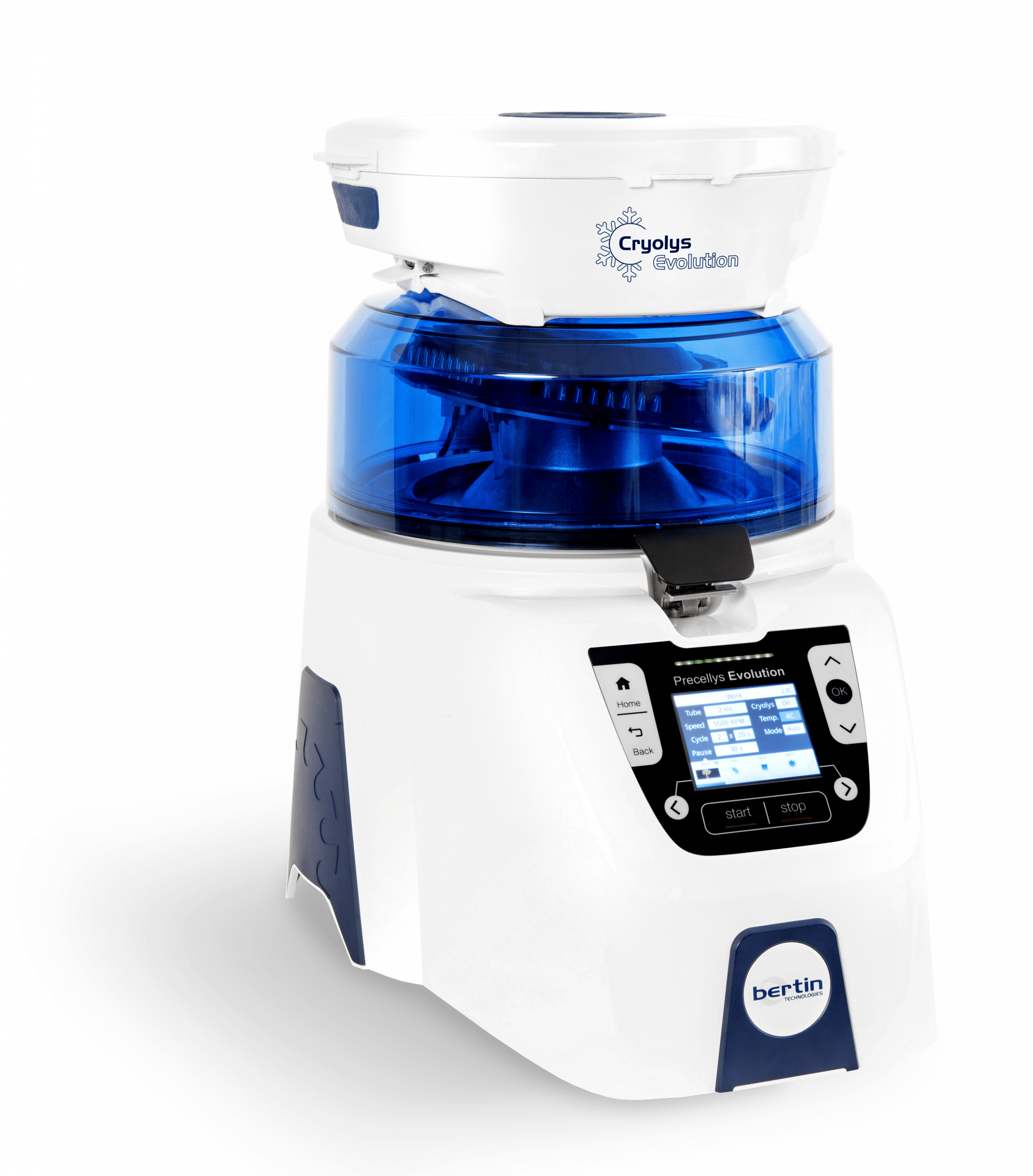

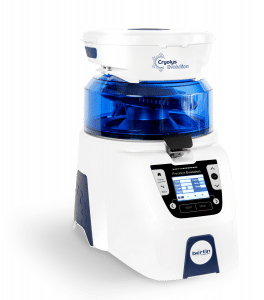

Combo Precellys Evolution Touch + Cryolys Evolution
K002198-PEVO0-A.0

Frequently Asked Question

    • What are the volumes of the tubes compatible with your instruments?
    • Is it possible to create my own lysis matrix?
    • What are the optimal parameters for my sample (beads, speed and tube volume)?
    • How can I prevent heat generation and keep a constant temperature of 4°C (+39°F)?

Read the answers and see the other questions

Precellys® Evolution Touch, a versatile tissue homogenizer

The technology behind the Precellys® Evolution Touch tissue homogenizer from Bertin health & life sciences is based on over 15 years of expertise in sample preparation. It can be used to homogenize any biological sample, whether animal, human, or plant, irrespective of whether the tissue is hard or soft. Based on the multidirectional movement of the beads in the tubes, 3D bead-beating homogenization is the most efficient and reproducible method in comparison to classical ones (mortar & pestle, sonication, blenders, high-pressure homogenizers). The speed can be set to up to 10,000 rotations per minute.

Precellys® Evolution Touch allows you to use six different tube volumes (from 0.3 to 50mL) and prepare between 1 and 96 tubes at the same time. In areas as varied as pharmacology, medical research, forensic medicine, the environment, microbiology, or agronomy, Precellys® Evolution Touch saves you precious time in your routine and R&D projects requiring tissue homogenization or cell disruption. This preliminary processing is crucial for proteins, drugs, metabolites, RNA or DNA extraction.

Download the Precellys Lysing kit brochure



It takes just a few dozen seconds to prepare your samples, even with the hardest tissue such as teeth, bones or hair. In record time, your samples are ready for analysis, whether you use PCR, Western Blot, mass spectrometry, high-performance liquid chromatography (HPLC), or next-generation sequencing (NGS).

Safe sample preparation with the Precellys® Evolution Touch tissue homogenizer

Produced in France and suitable for use in laboratories with microbiology safety level 3, Precellys® Evolution Touch is a robust tissue homogenizer. The patented vacuum locking system allows you to easily lock and secure the tubes before homogenization.
Protect your heat-sensitive samples during homogenization with the Cryolys® Evolution cooling unit, compatible with the Precellys® Evolution Touch homogenizer. The efficiency, versatility, and safe use of the Precellys® Evolution Touch tissue homogenizer make it the most reliable on the market.

Reasons to choose Precellys Evolution Touch Homogenizer

Full application support composed of more than 2,000 scientific documents based on user experiences to determine the best protocol for your samples.

Support is provided online 24/7 by our Application Center, or by our dedicated Application Specialists

With 30 different lysing kits available, Precellys is the most versatile range of homogenizers.

It allows users to homogenize, grind or lyse all sample types.

The easy-handling features allow the Precellys to be used without advanced training

10 years of expertise in sample preparation and more than 30,000 scientists who use the Precellys worldwide

A worldwide distribution network to support you wherever you are

Expert advice

Lucie T.

Field Application Specialist

"Check your sample's weight in order to choose the right volume of your lysing kit"

Lucie T.

Field Application Specialist

"Are you working with Proteins or RNA? Regulate the heat with the Cryolys cooling module which prevent heat degradation of the molecules"

Lucie T.

Field Application Specialist

"With its tube holder easily changeable, Precellys Evolution is the perfect instruments to be shared, in a lab with different type of samples while looking for the best grinding protocols for each"

Reviews

SelectScience

Application area: Analyze proteins in cell culture

"We are very happy with the equipment, we lyse cells, we lyse microbes, both to extract proteins and DNA to perform western blot, or sequencing. The lysis is very fast, and either protein or DNA is extracted with high quality. The results are reproducible."

Read full reviews >>
Write your own review >>

Paolo Guerra

Instituto Nacional de ICencias Médicas y Nutrición Salvador Zubirán

Rating: 5.0
Application Area: Tissue sample processing for metabolism studies

"Our lab purchased this homogenizer for metabolite extraction from animal tissue. We have been using it for a couple of years with no issue. It's a very powerful device that was able to crush any tissue sample that I have tried so far. It has a great deal of customization option to accommodate any type of sample as well."

Read full reviews >>
Write your own review >>

D. Mc Laughlin

NYU School of Medicine

"Precellys is really easy to use, without the need for special tools since you can fix the sample tubes on the equipment without screwing them.
I like the power of this instrument, it's the only optimized way to disrupt our sample using the 6500 rpm speed.
Precellys is the ideal beat beater to deal with various type of samples with its wide power range, from moderate to very strong."

Dr.Takahiro.Nagatake

National Institutes of Biomedical Innovation, Health and Nutrition
