• Size: 63 x 24 x 42 mm (WxHxD)
• Weight: 80g
• Power: 3.6W @ 25 Hz
CamSight Fusion Block – OEM LWIR Thermal Camera Module
CamSight Fusion Block is an all-in-one camera module featuring smart fusion capability.
CamSight Fusion Block is a long-wave infrared (LWIR) thermal camera, developed as an Original Equipment Manufacturer (OEM) solution for seamless integration into complex optronic systems. Equipped with thermal sensor LYNRED and visible sensor PYXALIS, it delivers with 3 viewing modes (visible, thermal and smart fusion).
This module camera has an ergonomic design, suited for constrained environments. It is tailored for Unmanned Aerial Vehicles (UAVs), and binocular or monocular thermal and visible viewings systems.
To meet a wider range of applications, CamSight Fusion Block is available in multiple observation modes: 60° for Driver Vision Enhancement (DVE), 30° for UAV and standard surveillance, 18° for high-quality surveillance using vision enhancers or turrets, and 11° for long-range observation.
Ultimately, CamSight Fusion Block combines pixel frequency analysis and selective pixel merging to produce an image that optimally unites the advantages of both channels.
SWaP
Video outputs
3G-SDI / Parallel Bus
On demand: MIPI / USB / GigE Vision
Time to image
< 2s
Reasons to choose CamSight Fusion Block – OEM LWIR Thermal Camera Module
3 viewing modes: thermal, visible and smart fusion
Low-latency, freeze-free video output
4 horizontal fields of view

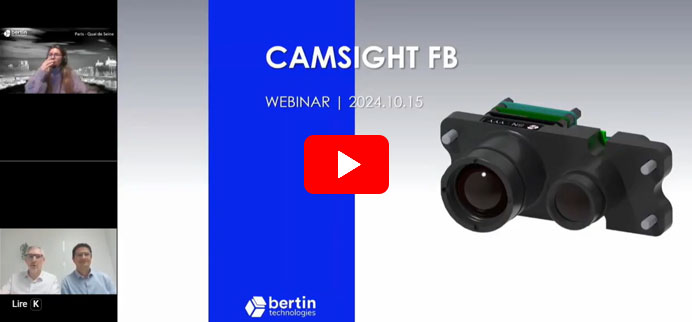

Discover the OEM multispectral camera module CamSight® Fusion Block!
CamSight® FB (Fusion Block) is an all-in-one LWIR thermal camera developed by Bertin Winlight for seamless integration into advanced optronic systems. Join our webinar replay to learn how this module can be integrated at system level.
