Radiological Control of Container Load (RCCL)

Detector:

PVT (PoliVinyl Toluene) plastic scintillator, coupled with high-diameter PMT with low electronic noise

Volume:

2.5 – 5 – 25 Liters

Energy range:

from 30keV to 5MeV

Response time:

<1sec

Operative temperature range:

-20°C / +50°C

Power supply:

110Vac / 220Vac

RCCL is an easy-to-use portal monitor with high reliability:

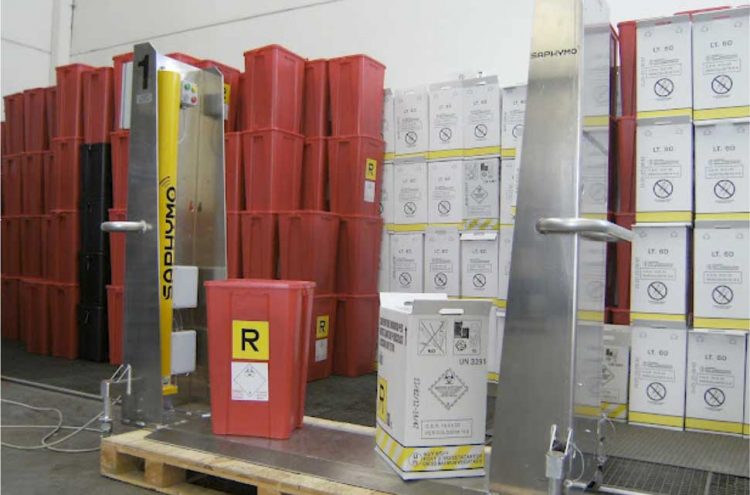

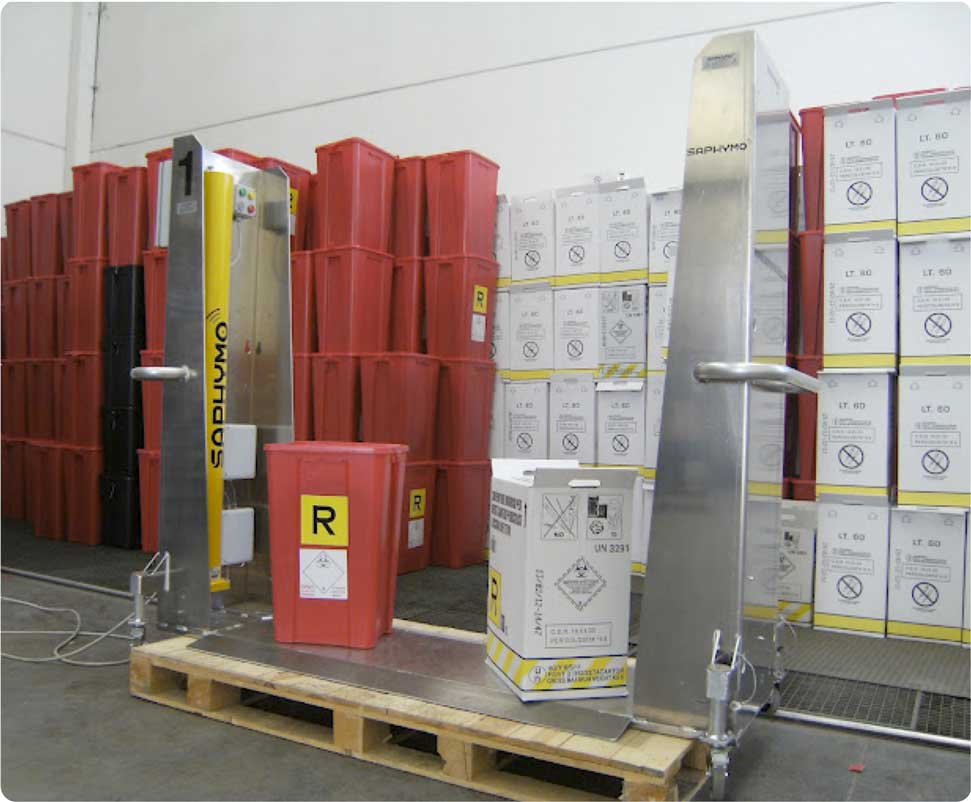

It allows for accurate detection of all low level radioactive contamination and medical sources in hospital waste. The modular design extends its application to several specific customized solutions.

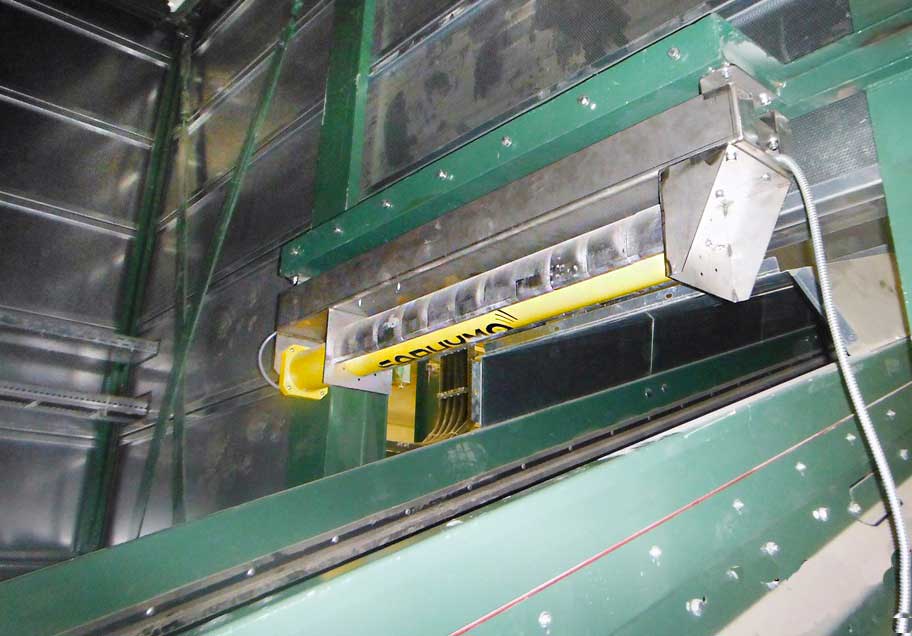

It can also be used for monitoring Gamma radiation in other waste or recycling material and for special applications such as conveyor belts.

RCCL architecture benefits include:

low cost of ownership
easy maintenance
wide automation and easy operation.

Using large volume PVT plastic scintillator and high diameter PMT with low electronic noise, RCP ensures optimal detection sensitivity for Gamma rays with a fast response time. The counting rate is sampled each 100ms.

Special custom design option to satisfy specific customer needs.

Radiological Control of Container Load (RCCL)

Reasons to choose Radiological Control of Container Load (RCCL)

Large volume PVT detectors

Fast response time for early decision-making

Competitive cost of ownership

Superior protection grade

User-friendly, fully automatic, easy-to-maintain

Radiological Control of Container Load (RCCL)

Reasons to choose Radiological Control of Container Load (RCCL)

Large volume PVT detectors

Fast response time for early decision-making

Competitive cost of ownership

Superior protection grade

User-friendly, fully automatic, easy-to-maintain
