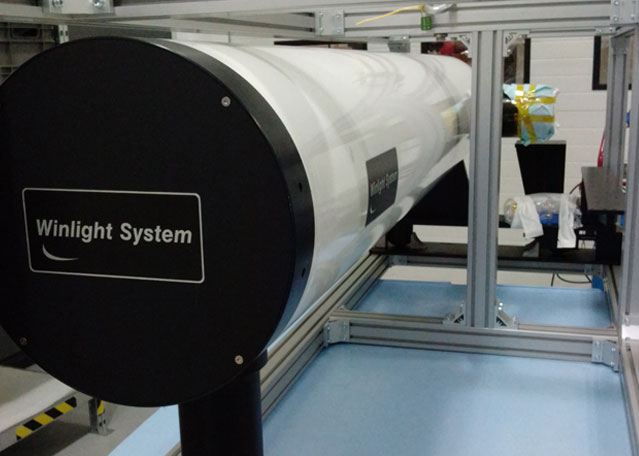

Off Axis Collimators
Bertin Winlight’s off-axis collimators are designed to meet the instrumentation and characterization needs of military, space, and industrial environments.
Thanks to an optical architecture using off-axis aspheric mirrors, Bertin Winlight’s off-axis collimators offer full spectral coverage from the visible to the far infrared (LWIR), exceptional accuracy, high thermal stability, and no chromatic aberration.
- Optimized for long focal lengths, without compromising image quality
- Spectrally versatile, from visible to LWIR
- Proven mechanical and optical stability
- For laboratory or field use
Our expertise and qualified industrial resources also enable us to design customized solutions to meet specific needs.
Applications
- Harmonization/alignment of axes
- Axis and optical quality reference
- Optical characterization benches (FTM, etc.)
Range
We offer standard configurations suitable for a wide variety of use cases, while also offering the possibility of developing customized solutions according to your specific needs.
Standard configurations
| Focale (mm) | Diameter (mm) | Quality (RMS) | Coating |
|---|---|---|---|
| 250 | 150 | 30 | None |
| 250 | 150 | 30 | Ag |
| 500 | 250 | 30 | None |
| 1000 | 300 | 30 | Ag |
| 2000 | 250 | 30 |
Options
- Field corrector that can be integrated into the collimator to correct the wavefront of the most extreme fields.
- ISO5 clean room.
- Glass and metal reticles/crosshairs.
Key-benefits
Spectral range adjustable according to requirements
Very high stability even in extreme conditions
No compromise on image quality
