Telescopes
Bertin Winlight telescopes are designed to meet the needs of high-quality instrumentation and imaging, even in the most demanding environments, across a wide spectral band from the visible to the far infrared (400 nm – 14 µm).
Bertin Winlight telescopes can incorporate multifocal combinations with precise maintenance of the sighting axis between fields (25µrad) if required.
Our products are based on lightweight mirrors and structures to be compatible with applications on trajectory tracking turrets with severe space constraints.
Our expertise and qualified industrial resources also enable us to design customized solutions to meet specific needs.
Application
- Laboratory, scientific, military, space
- Very long-range observation, Field metrology
- Telescope for trajectory tracking turrets
Key-benefits
Very wide spectral band (from visible to far infrared)
Very high image quality (FTM) and axis maintenance (25µrad)
Proven stability in harsh conditions
Reduced weight for mounting on trajectory tracking turrets

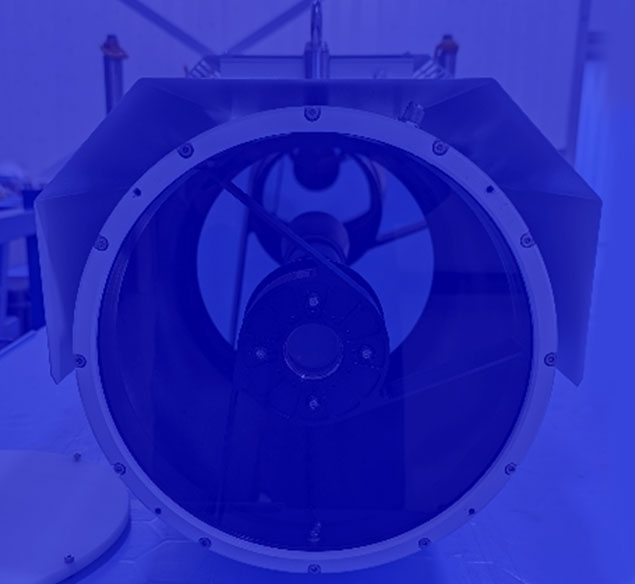

Monofocal telescope
- Visible collimator focal length 2m
- Ø250mm
- Lightweight mirrors
- Axis holding 25µrad (All focal length)
- Harsh environment

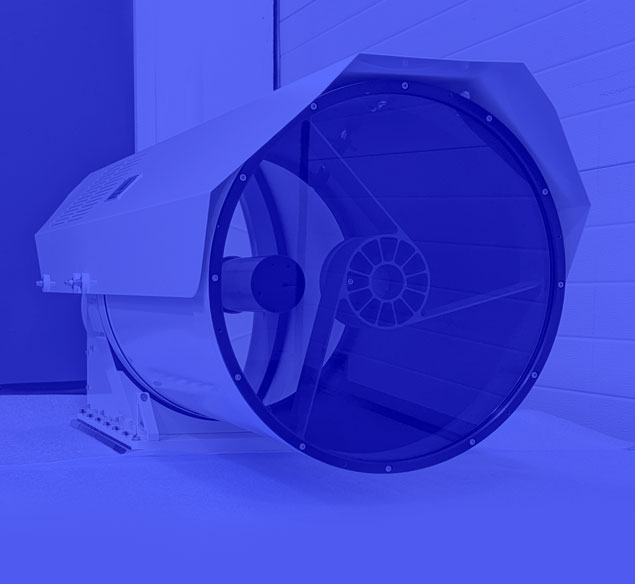

Trifocal telescope
- Visible collimator focal length 2.4 / 6.7m / 8m
- Ø400mm (Diffraction limited)
- Lightweight mirrors
- Axis holding 25µrad (All focal lengths)
- Harsh environment
