Thermal night vision device – Perisight - Bertin Technologies

perisight

Thermal night vision device – Perisight

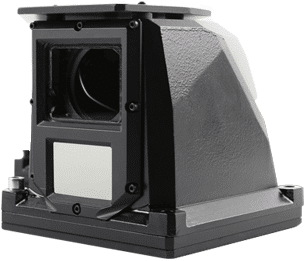

PeriSight is a high-performance, scalable optronic solution to be distributed over the platform for optimized night and day surveillance, up to 2 km.

Driver support, safe manoeuvres, detection and identification of any obstacle or threat around the vehicle, by day or night under degraded conditions… these are the main performances of Bertin Instruments’ PeriSight.

Compliant with military standards, this ruggedized solution can adapt to any type of armored vehicle, to give the crew a panoramic view over the platform and offer optimum visual comfort to the pilot despite driving with reduced visibility.

The PeriSight optronic equipment is based on 2 or more camera modules distributed over the platform according to an optimized configuration adapted to the user needs, be it Driver Vision Enhancement (DVE) or Local Situational Awareness (LSA).

Driver Vision Enhancement – For safe, intuitive and comfortable driving, Bertin Instruments recommends combining two PeriSight modules on either side of the vehicle in order to multiply vision modes (thermal and color low light): front or rear view; front and rear view for simultaneous observation. Fusion and electronic stabilization are both optional functionalities.

In this configuration, the driver vision enhancement solution provides fluid, low latency pictures, allowing the pilot to drive with confidence under armor, up to 80 km/h. It thus reduces the risks linked to fast driving with poor visibility.

Local Situational Awareness – The local situational awareness solution PeriSight consists in 4 to 8 optronic sensors distributed over the platform depending on the user needs and the vehicle type. Improving the crew’s safety on board and facilitating manoeuvres, it can feature advanced surveillance functions: acoustics, telemetry, video stream sharing, automatic target detection and tracking (options).

Providing high quality panoramic view, it can meet varied fixed or mobile applications, regardless of the tactical, strategic or operational goals. This impact-resistant, 360-degree local situational awareness system significantly improves the surveillance of the vehicle’ surroundings: its 3 viewing modes (day, night, fusion), several fields of view, and segmented or stitched panorama images all guarantee PeriSight’s perfect adaptability to operational threats and constraints.

Watch PeriSight in action,
the best night & day vision enhancer for vehicle!

• 360° Local Situational Awareness (LSA)
• Driver Vision Enhancer (DVE)
• Multiple compact optronics modules
• Operational under degraded conditions
•  Ruggedized system, compliant with MIL-STD

Get a quote for
Thermal night vision device – Perisight

Get a quote

MODULES

FISH-EYE

  • HFOV NIGHT: 180°
  • HFOV DAY: 180°
  • Day detection range: 515m* / 218m**
  • Night detection range: 240* / 125m**

WFOV

  • HFOV NIGHT: 105°
  • HFOV DAY: 94°
  • Day detection range: 980m* / 537m**
  • Night detection range: 410m* / 233m**

DVE

  • HFOV NIGHT: 57.3°
  • HFOV DAY: 53.8°
  • Day detection range: 1700m* / 936m**
  • Night detection range: 750m* / 426m** * 2.3m x 2.3m Vehicle ** 0.5m x 1.75m Person

THERMAL SENSOR

  • UC 8-12μm
  • 640×480@17μm

VISIBLE SENSOR

  • CMOS Low Light Color
  • 1280x1024p

DIMENSIONS

  • < 20*17*21 cm

WEIGHT

  • < 3kg

VIDEO OUTPUT

  • 25Hz – HD – Color

State-of-the-art vision technologies

  • All-in-one with three viewing modes – colour low light, thermal and smart fusion
  • Working night & day, detection up to 2 km
  • Includes an awarded colour low light sensor designed by Photonis

User comfort

  • Adapted FOV for extreme operational driving conditions
  • Multiple compact optronic modules

Valuable additional benefits

  • Image recording and HD video output for proof collection
  • Compact, modular, adapted to all kinds of military vehicles

Compact modular Optronics system in 4 steps:

1 – MODULES DEFINITION PeriSight imaging sensor modules include color low light and thermal sensors. Field Of Views are adapted on the application.

  • COLOUR LOW LIGHT: A state-of-the-art color imaging sensor provides a first image in extreme low light conditions (~10 mlx) without additional illumination.
  • THERMAL: A high-resolution thermal sensor detects people under all night conditions.

2 – VEHICLE POSITIONING EXPERTISE Bertin Instruments provides expertise in selecting modules according to user needs and vehicle type.   3 – DATA PROCESSING SOLUTION PeriSight modules are wired to a single electronic housing (VigiSight 65) for electronic stabilization, automatic detection and tracking.

4 – INTEGRATION SERVICES Bertin Instruments provides full integration services for the PeriSight system. Videos are displayed on a screen, which is also used to control and command PeriSight.

  • Fish-eye module
  • WFOV module
  • DVE module
  • Operator screen

Reasons to choose Thermal night vision device – Perisight

All-in-one with three viewing modes

Colour low light, thermal and smart fusion

Night & day 360° surveillance in short range

Operational in extreme driving conditions

Adapted to any kind of vehicle or armored vehicles

Multiple compact optronic modules
